Product Description

Basic Information

Model NO.

Logistic Elevator

Transport Package

Well-Packed

Specification

Customizable

Origin

China

HS Code

8425429000

Production Capacity

5000 Units

Package Size

150.00cm * 150.00cm * 150.00cm

Package Gross Weight

300.000kg

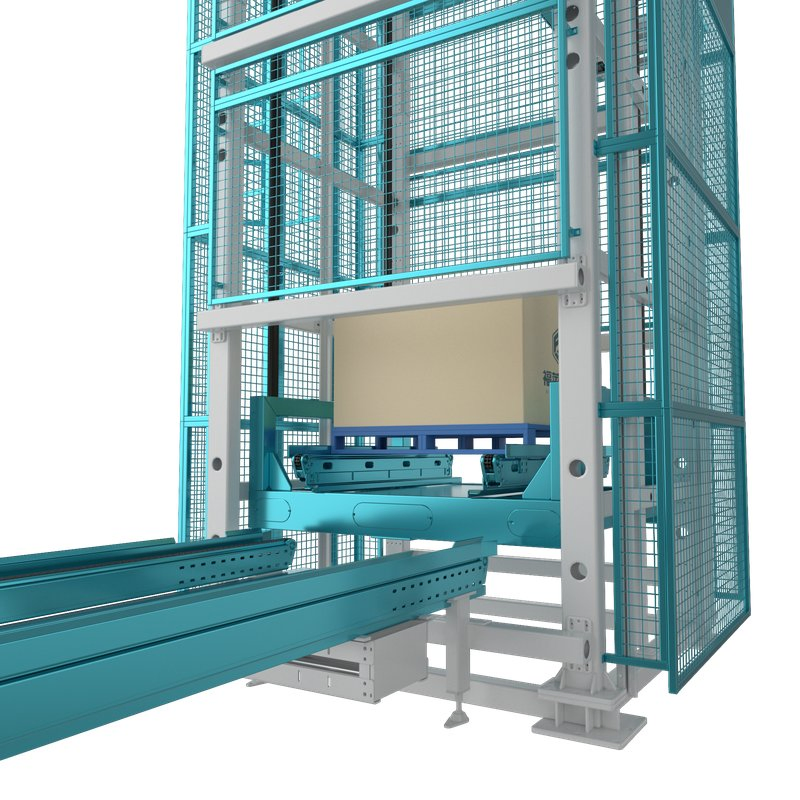

Product Overview

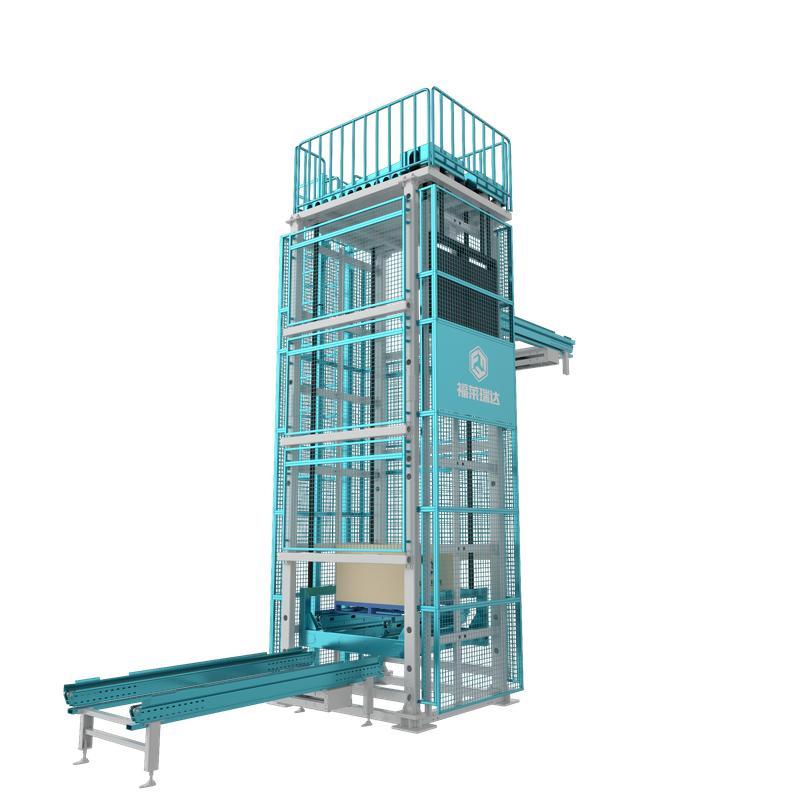

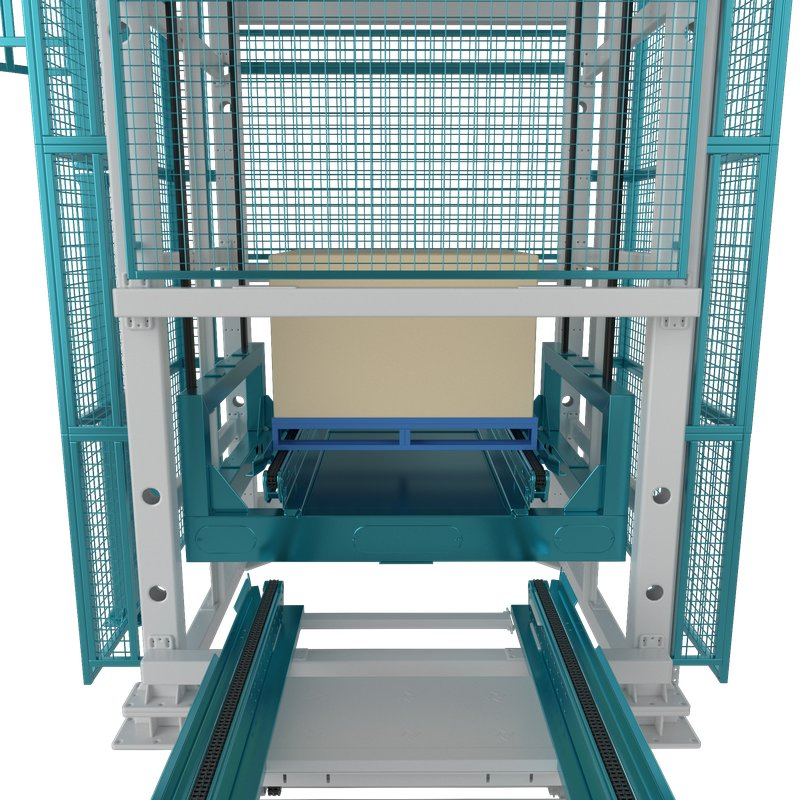

Pallet elevator is a kind of equipment specially used in places such as warehouses and factories, mainly used for vertical lifting, transfer and storage of goods. It drives the lifting device such as rails or wire ropes through electric motors or hydraulic systems to lift goods from one height to another, which can meet a variety of vertical transportation needs. When selecting and using a cargo lift, it is necessary to consider the specific working environment and material characteristics to ensure that it can operate efficiently and safely.

★

Features & Advantages

Outstanding Carrying Capacity Most materials can be lifted, with a maximum load of up to 2000Kg.

High Conveying Capacity Maximum transport capacity is 90 pallets/hour, with speeds up to 90 meters/minute.

Space Utilization Adopting a frame structure, the design is compact, stable, and meets international safety standards.

Energy Saving Uses lightweight materials and low energy consumption structures to achieve low power drive.

Wide Application Ideal for electronics, chemical, automobile, food, tobacco, medicine, and cold chain industries.

⚙

Technical Parameters

Technical Parameters	Unit	Typical Range/Value
Rated load	kg	≤1000
Equipment height	m	≤38 (Maximum docked height)
Boost speed	m/min	≤40
Transfer speed	m/min	5-15
Maximum lifting height	m	37
Minimum docking height	mm	700
Positioning accuracy	mm	±2
Proper temperature	ºC	-25 to +65
Installation form	-	Fixed
Operating mode	-	Manual / Single / Connected / Maintenance

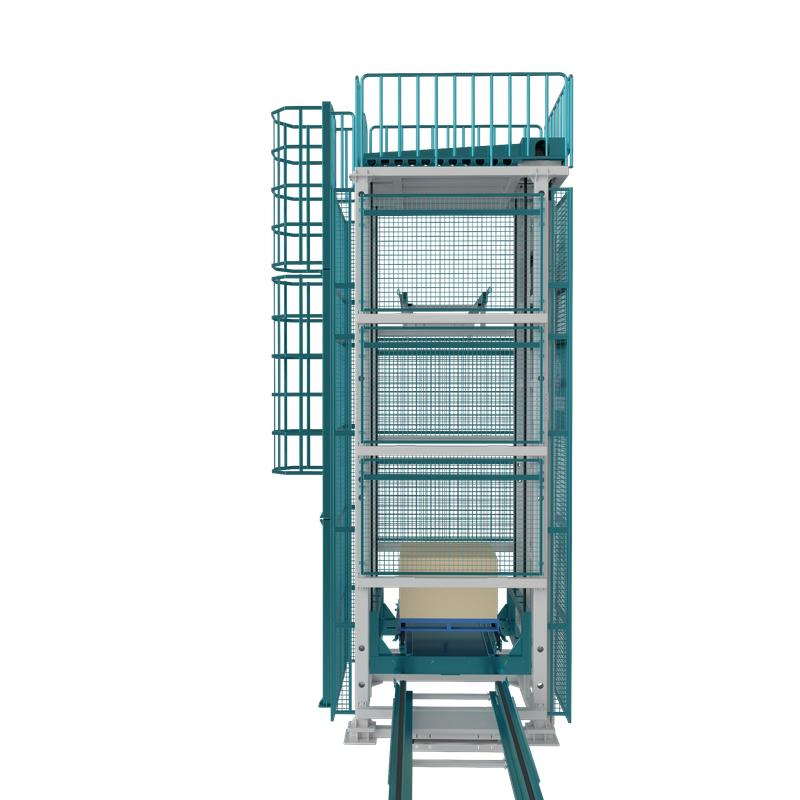

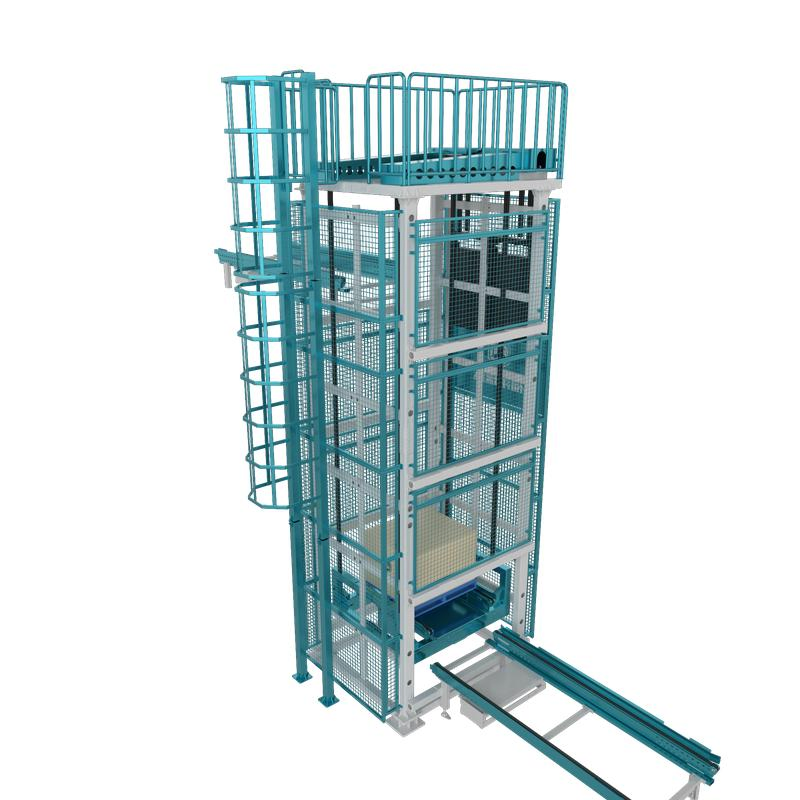

Product Gallery

Frequently Asked Questions

What is the maximum load capacity of the pallet elevator?

The pallet elevator can handle most materials with a maximum load capacity of up to 2000Kg depending on the specific configuration.

In which industries can this cargo lift be used?

It is widely used in automated production industries including electronics, chemical, automotive, machinery, cold chain, food, tobacco, and medicine.

What is the maximum lifting height available?

The maximum equipment height can reach up to 38 meters, with a maximum effective lifting height of 37 meters.

How fast can the elevator transport pallets?

The system supports a maximum transport capacity of 90 pallets per hour and can reach a boost speed of up to 40 meters per minute.

What are the supported operating modes?

The equipment supports multiple modes including manual operation, single machine operation, connected machine operation, and a dedicated maintenance mode.

Can it operate in extreme temperature conditions?

Yes, the pallet elevator is designed to operate effectively in environments ranging from -25ºC to +65ºC.
